KDPvsPROVAC
spec KDP PROVAC
Screw - 일체형
- 등변 Pitch
- 일체형
- 일체형가변 Pitch
Lubrication - Front : Oil
- Rear : Grease
- Front : Oil
- Rear : Grease
Shaft Seal - Bellows type Mech. Seal
- Lip Seal
- Wave type Mech. Seal
- Lip Seal
Motor Coupling - Flange type Coupling
- C-Flange
- C-Flange
Pressure [torr] 1 x 10-2 1 x 10-2
Power [Kw] 15Kw (KDP400) 11 Kw (KDPH430, PROVAC P450)
Application - Chemical Process
1. Extruder
2. Resin Fatty Acid
3. Edible Oil
4. 제약 건조
5. Nylon
6. PET
7. Spandex - General Industry
- General Industry
1. Furnace
2. Coating
3. Degassing
- ATEX 관련
Process
FEATURES
·DRY TYPE VACCUM PUMP
·SOLID HANDLING CAPABILITY
·SEVERE DUTY OPERATION
·LOW OPERATION COST
·LEAK TIGHT CONSTRUCTION
·SIMPLE DESIGN AND LOGN PUMP LIFE
·CLEAN OPERATION
·QUICK DISCHARGE
·LOW VIBRATION AND LOW NOISE LEVEL
·HIGH VOLUME EFFICIENCY

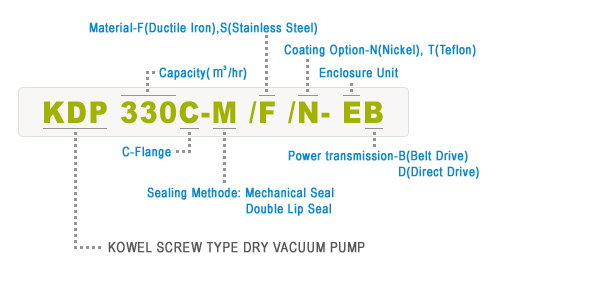

indication
